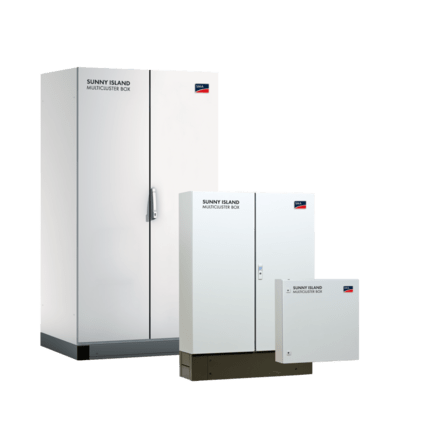

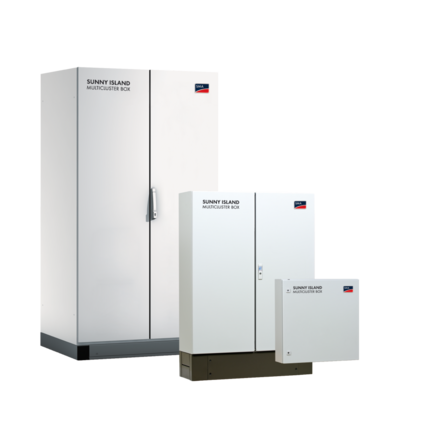

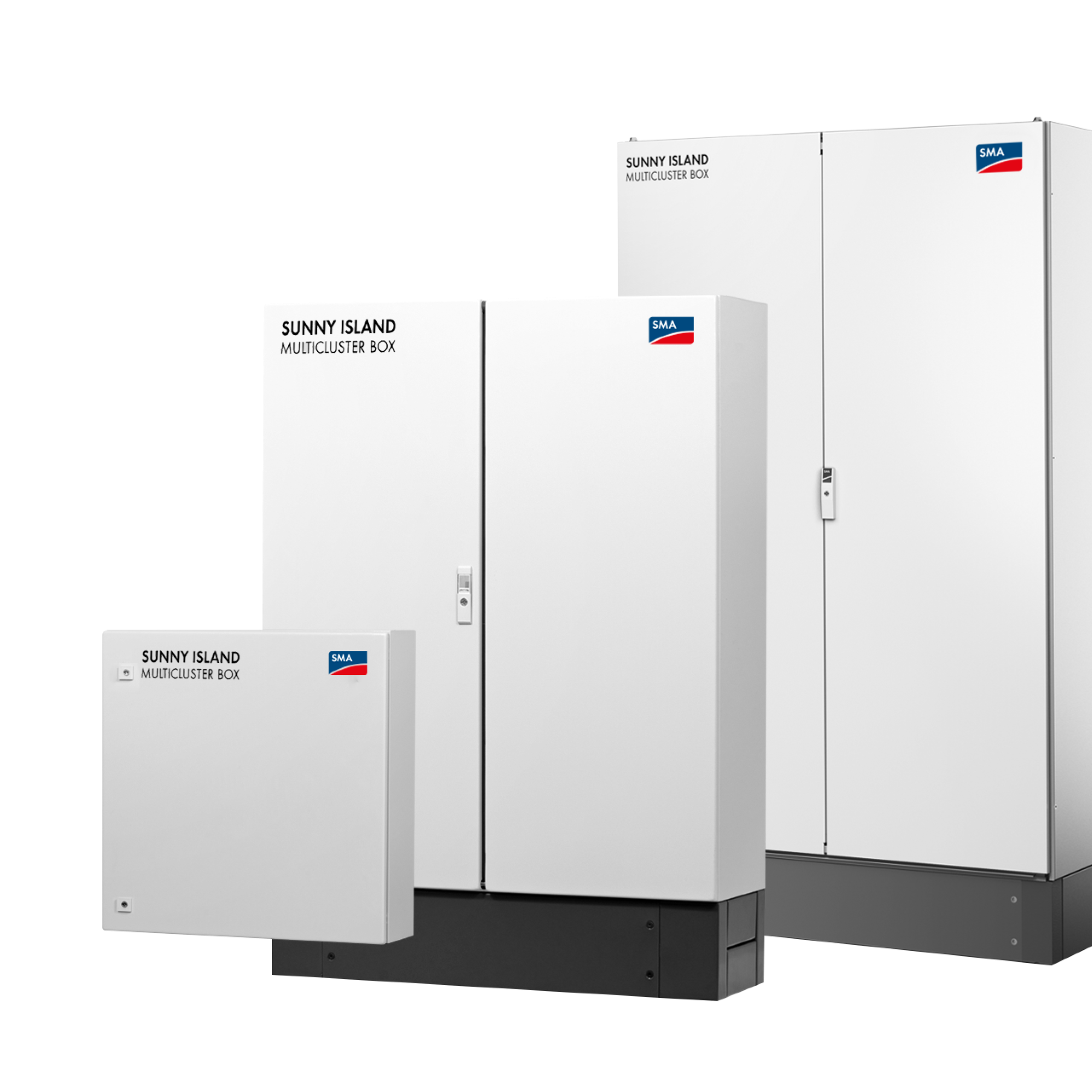

Multicluster Box per Sunny Island

Semplice realizzazione di sistemi ad isola e ibridi

Multicluster Box per Sunny Island

Semplice realizzazione di sistemi ad isola e ibridi

The power of the AC main distribution unit for Sunny Island systems has been increased by 20 %. This allows off-grid and hybrid systems in the power ranges of 20 to 300 kW to be implemented even more cost-effectively. The specific costs for the overall system are being reduced thanks to a maximum PV output of 360 kW and the flexible design capability of the Sunny Island 6.0H / 8.0H. Based on proven technology, 2 to 12 three-phase clusters, each consisting of 3 Sunny Island inverters, can be connected in parallel. To simplify installation, all Multicluster Boxes are completely wired and fitted at the factory and have a main connector for generators, the load distribution and PV or wind turbine systems. All data cables required for the installation are included in the delivery. With the Multicluster solution for Sunny Island, you really have thought of everything. Even complex energy supply solutions are easy to implement.

Vantaggi

Flessibilità

  • Tre diverse classi di potenza, da 20 kW a 300 kW

  • Generatori, FV e carichi diversi

Simple

  • Elevata densità di potenza

  • Massimo grado di rendimento: 98,6%

  • Ridotti costi di trasporto (fino a 4 inverter in un container standard)

Sicurezza

  • Bypass automatico per il generatore FV

  • Anti-Islanding attivo

  • Monitoraggio della corrente inversa

Solidità

  • Alta classe di protezione IP65 (MC-Box-6.3-11)

  • Alta classe di protezione IP55 (MC-Box-12.3-20)

  • Alta classe di protezione IP54 (MC-Box-36.3-11)

  • 5 anni di garanzia di SMA
